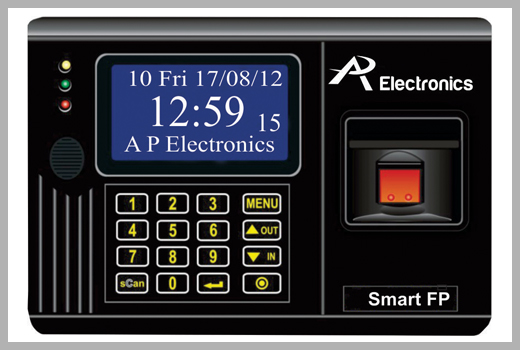

Fingerprint System - Smart FP

Smart FP Attendance & Access Control System works upon unique, permanent and scan able human characteristics, which cannot be shared with any other person. The fingerprint device digitally processes them into template. Template are then stored in the database associated with the device or in a smart card given to the individual known as an enrollment. In order to gain access, an individual scans a finger that is matched with the available template in device or in smart card.

Download Brochure

Standalone Attendance & Access control System
Identification by Finger, Mifare & EM card
Large storage of FIngerprint template (9500)
22,500 Punch storage capacity (40,000 optional)
2,000 Employee database (4,000 optional)
Easy function for finger registration
Large display with date, time, name and scrolling message
LED & sound for OK & Error message
Keypad for easy operation
Inbuilt TCP/IP & ISB pen drive for data upload/download (optional)

Authentication

Finger, Mifare, EM Card

Fingerprint Sensor

Optical - Suprema Inc. Korea

Fingerprint Capacity

9,500

Template Standard

ISO 19794-2

Resolution & Image Size

500 dpi & 272 x 320(pixel)

Fingerprint Sensor Area

16 x 19 mm

Fingerprint Verification

1:1, 1:N

Fingerprint Recognition

<1 second

Punch Capacity

22,500 (40,000 optional)

Employee Capacity

2,000 (4,000 optional)

Display

128 x 64 Graphic LCD with backlight

Keypad

4 x4 Numeric & Function keys

Indicator

3 LED for power On, OK & Error

Connectivity

TCP/IP & USB for data download

Output

Relay

Operating Voltage

5 V DC / 1.5 Amp

Size (H x W x D)

183mm x 139mm x 50mm

* Due to continuous product enhancements, specifications are subject to change without notice

Battery Backup (UPS)

4 hours battery backup for full operation

Reader

EM / Smart card reader

* Due to continuous product enhancements, specifications are subject to change without notice

Windows based user friendly transfer & MIS software
Online web based attendance management system

* Due to continuous product enhancements, specifications are subject to change without notice
